Product details:

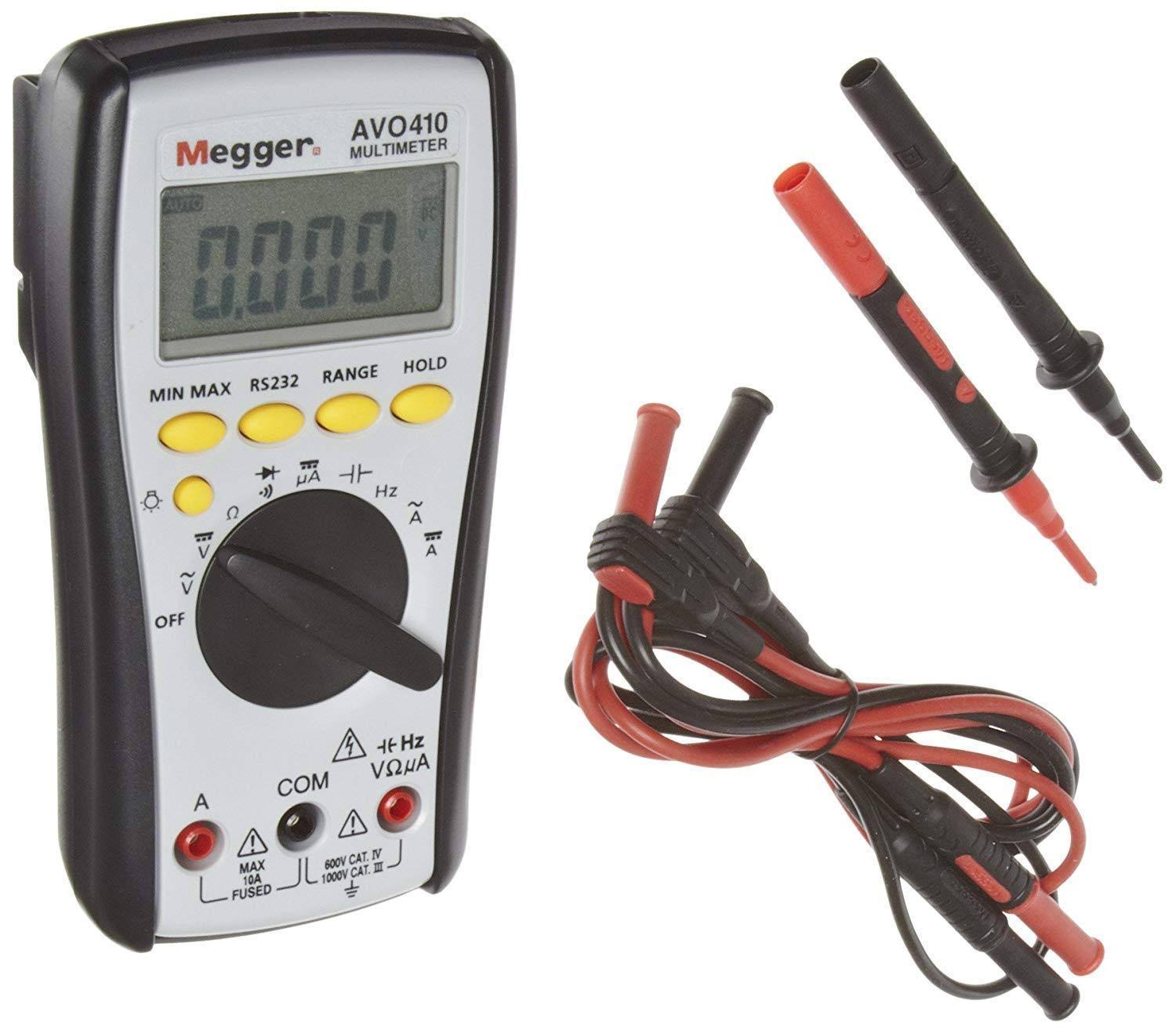

Megger AVO410 Digital Multimeter True RMS Cat IV 600V Professional Voltmeter The Megger AVO410-US digital multimeter is a true RMS (root mean square) sensing, auto- or manual-ranging meter for measuring current, voltage, resistance, capacitance, and frequency in electrical testing applications. The meter comes with a set of detachable test leads and probes that measure alternating current (AC) and direct current (DC) to 10 amp, AC voltage to 750 volts (V), DC voltage to 1,000V, resistance to 60 megaohms, capacitance to 6 millifarads, and frequency to 60 megahertz (MHz). The microamp reading identifies current changes in flame detector applications. The maximum or minimum reading mode displays the highest or lowest reading in a session to track a sudden increase or decrease in readings. The hold function keeps a reading on the display, even after the meter is disconnected. An audible continuity sensor confirms that the circuit conducts electricity, and a diode test detects proper functioning of a circuits diodes. The meter's backlit liquid crystal display (LCD) is readable in low light. The meter has an RS-232 port for connecting the meter to a computer (USB adapter and cable not included). The unit automatically turns off after 10 minutes of non-use to conserve battery life, and a low-battery indicator signals when the meter's batteries need to be replaced. The meter comes with a molded rubber holster that fits onto the meter to help protect against damage from falls, impacts, and abrasion. The meter can survive falls of up to 1.2 meters to a hardwood or concrete floor. - This true RMS sensing meter provides accurate readings when measuring linear loads, such as standard induction motors and incandescent lights, where the current or voltage has a sinusoidal waveform, or non-linear loads, such as electronic devices or motors, where the current or voltage has a non-sinusoidal waveform. When turned on, the meter is in auto-ranging mode and automatically selects the correct operating range for the property being measured. It can be switched to manual-ranging mode, which allows the operator to choose the appropriate operating range. It meets International Electrotechnical Commission (IEC) safety standard 61010 and is certified for category IV installations up to 600V, which covers measurements at the source of the low-voltage supply, such as electricity meters and overcurrent protection devices. - Maximum alternating current (AC) input10 amp - Maximum direct current (DC) input10 amp - Maximum AC voltage input750 volts (V)Maximum DC voltage input1,000VMaximum DC microcurrent input6,000 microamp - Maximum resistance detected60 megaohms - Maximum capacitance detected6 millifarads Features Meets ISO standard 9001:2008. Response takes less than a day. - Check out my other items! Add me to your favorites list if this item interests you! Thanks for looking! Add a map to your own listings. FREE Trial!
